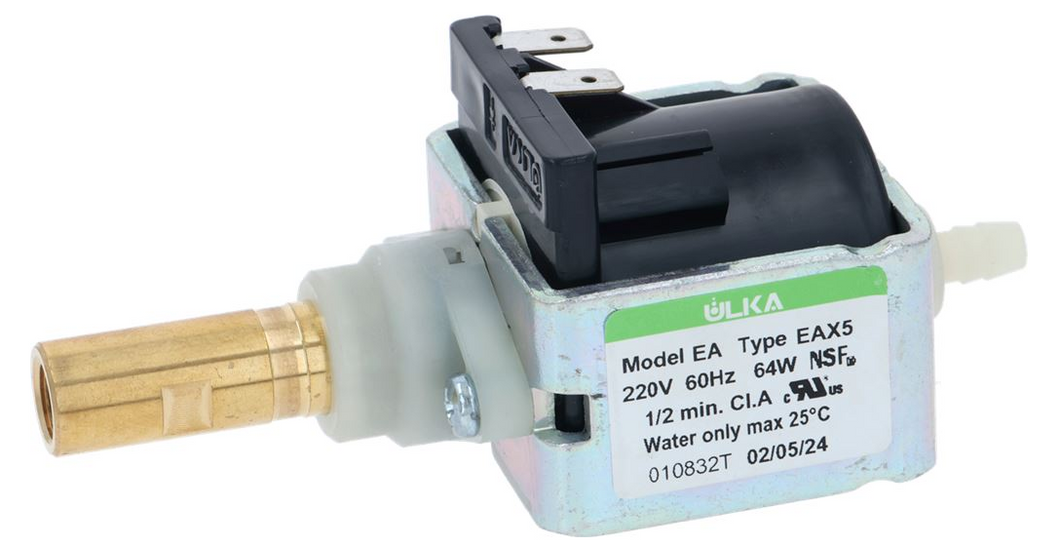

Saeco Gaggia 220V 60Hz Ulka EAX5 Vibratory Vibration Vibrating Pump Part

Saeco Gaggia 220V 60Hz Ulka EAX5 Vibratory Vibration Vibrating Pump

10138207PA

fittings ø 1/8" - ø 6 mm
max. pressure 15 bar
max. water temperature 20°C
integrated diode (1N 4007P)
connector terminal 6.3x0.8 mm
NSF approved

• Replaces vibratory pump on many espresso machines
• A new water pump can solve water flow issues

What the Specs Mean

• The "X" (Brass Outlet): Ulka pumps usually end in either "P" (EP5, EAP5) or "X" (EX5, EAX5). The "X" designates that the pump features a threaded brass outlet piston rather than a plastic one. This makes it significantly more durable and less prone to stripping or cracking under heat and high pressure.

• Form Factor: The body size, rubber mounting brackets, and water connections (usually 1/8" threaded and a 6mm slip fitting) are an identical industry standard. You can easily use this EAX5 to upgrade a machine that originally came with a cheaper plastic EP5 pump.

• 64W Coil: Standard Ulka pumps usually feature 41W, 48W, or 52W coils. The 64W version is a heavier-duty unit, allowing it to maintain water pressure very consistently during long extraction times without dropping off or overheating as quickly.

Compatible Espresso Machine Brands

If your machine is wired for 220V/60Hz, this exact pump serves as a direct drop-in replacement for vibratory models across the following brands:

• Prosumer Machines: ECM (Classika, Mechanika, Casa), Profitec (Pro 300, Pro 500), Rocket Espresso (Appartamento, Giotto, Cellini), Lelit, Quickmill, Isomac, La Spaziale (Mini Vivaldi).

FITS also:

o        Saeco All Automatic Models

o        Saeco All Semi-Automatic Models

o        Gaggia All Automatic Models

o        Gaggia All Semi-Automatic Models

o        Spidem

o        Jura

o        Solis

o        La Pavoni
